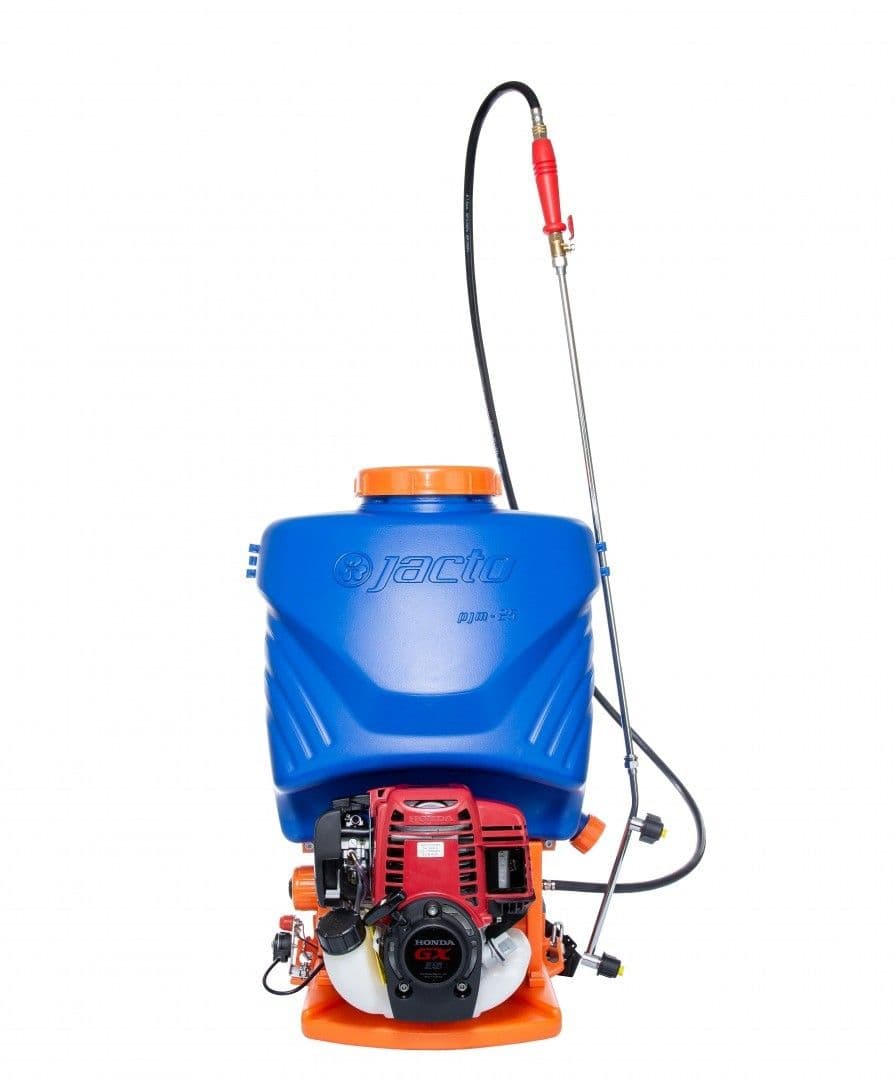

JACTO PJM-25

The new PJM-25 Motorized Sprayer was designed to meet the needs of producers who need high power and efficiency for spraying. With 25-liter tank capacity, up to 360psi working pressure, 4-stroke engine (35 cc), maximum 10 L/min flowrate, 2 technical nozzles (ATR 2.0), increased agility, and wide spray coverage will be within your reach.

  • Ceramic Piston Pump: 10L/min flowrate at 7,000RPM, with greaseless lubrication system (grease-free).
  • Dual ATR 2.0 Nozzles: Manufactured in high wear resistance ceramic, it maintains exceptional application quality even at high pressures.
  • Improved Performance: The engine and pump assembly provides high flow and pressure and enables using two lances* simultaneously, further increasing the spraying performance.
  • Parts and Maintenance: An authorized technical service network and easily accessible spare parts.
Buy Now
  • Applications:Vegetables, Fruit trees, Orchards, Tobacco, Coffee, Banana, Grape, Seedlings, Cereal, Sugar cane, Livestock
  • Area Sizes:Up to 10 ha, Up to 25 ha, Up to 50 ha, Up to 200 ha, Above 500 ha
  • Spraying Type:Motorized knapsack sprayer
  • Recommendations:Approved agrochemical pesticides
  • Dimensions:Tank 25 liters: GW: 13.3 kg (29.3 lbs) and NW: 11.5 kg (25.3 lbs), Tank opening diameter: 150 mm (6 in), Material: Polyethylene
  • Lance:Length: 853 mm (33.5 in)
  • Hose:Length: 1,600 mm (62.9 in)
  • Warranty:01 year - as per manual
  • Pump Type:Piston
  • Maximum Pressure:360 psi (25 bar)
  • Open Flow:10 liters/minute (7000 RPM)
  • Chamber Volume:900 ml (30.4 oz)
  • Material:Ceramics
  • Triggering System:Automatic centrifugal clutch
  • Pressure Regulation System:Check valve
  • Engine Type:HONDA 4-stroke
  • Engine Output Power:1.3 hp / 7,000 rpm
  • Engine Max Net Torque:1.6 Nm / 5,500 rpm
  • Cooling System:Forced air circulation
  • Ignition System:A-magnet, Transistorized
  • Fuel Tank Capacity:0.63 L
  • Engine Oil Capacity:0.1 L (3.3 oz)
  • Spark Plug:NGK: CMR5H
